2002 Airborne Zeppelin

Geometry

2002 model year

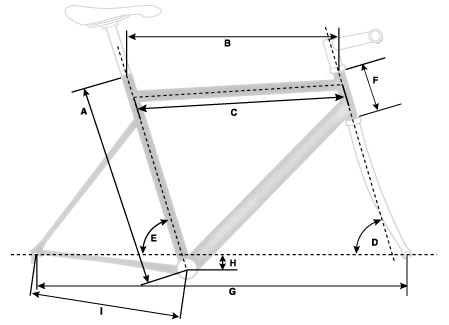

Zeppelin Geometry: METRIC (Expressed in CENTIMETERS)
Center to Top	Effective T/T	Actual T/T	H/T Angle	S/T Angle	H/T Length	Wheel Base	B/B Drop	C/S Length	Fork Rake	Stand Over Height	Weight
A	B	C	D	E	F	G	H	I
50	52.5	51.0	72.5°	74.0°	11.0	96.3	7	40.8	4.3	73.9	3.11 lbs. / 1.41 kgs.
52	53.9	52.5	73.0°	74.0°	12.0	97.3	7	40.8	4.3	75.0	3.17 lbs. / 1.44 kgs.
54	55.2	54.0	73.0°	73.0°	13.5	98.0	7	40.8	4.3	76.5	3.23 lbs. / 1.46 kgs.
56	56.7	55.5	73.0°	73.0°	15.0	99.4	7	40.8	4.3	78.1	3.27 lbs. / 1.48 kgs.
58	58.0	57.0	73.0°	73.0°	16.5	100.7	7	40.8	4.3	79.2	3.45 lbs. / 1.57 kgs.
60	59.7	58.5	73.5°	72.5°	18.0	101.5	7	41.1	4.3	81.0	3.53 lbs. / 1.60 kgs.
62	61.3	60.3	73.5°	72.0°	19.5	102.7	7	41.1	4.3	83.0	3.60 lbs. / 1.63 kgs.

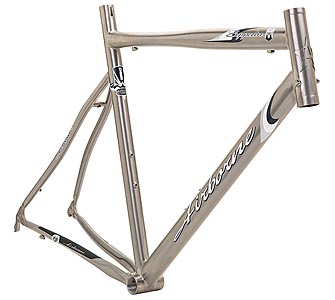

Airborne Zeppelin Armament
»	Cold-worked 3Al / 2.5V seamless titanium tubing.
»	NEW 1 1/8" oversized externally and internally CNC machined head tube.
»	GAMS (Graceful Arc Maximum Stiffness) 22.2mm curved, tapered, and ovalized chainstays.
»	GAMS (Graceful Arc Maximum Stiffness) 17.0mm curved and tapered, seatstays.
»	Optimal size specific tubing (Larger diameter tubing used on larger size frames).
»	Sleek, bladed down tube creates an exceptionally stiff and aerodynamic ride.
»	Exclusive, biaxial ovalized top tube creates a laterally stiff yet vertically compliant ride.
»	Extended seat tube increases stand over height while creating a smaller and stiffer front triangle.
»	CNC machined and sculpted chainstay and seatstay bridges.
»	CNC machined and tapered cable stops.
»	CNC machined integrated shifter cable guides with 8-point detent.
»	Encapsulated titanium dropouts produce a lighter design with minimal size.
»	CNC machined 68mm English threaded bottom bracket.
»	CNC machined sculpted 7mm thick titanium dropouts.
